Fibonacci256 Expanding is a beautiful 166mm circular disc with 256 RGB LEDs surface mounted in a Fibonacci layout.

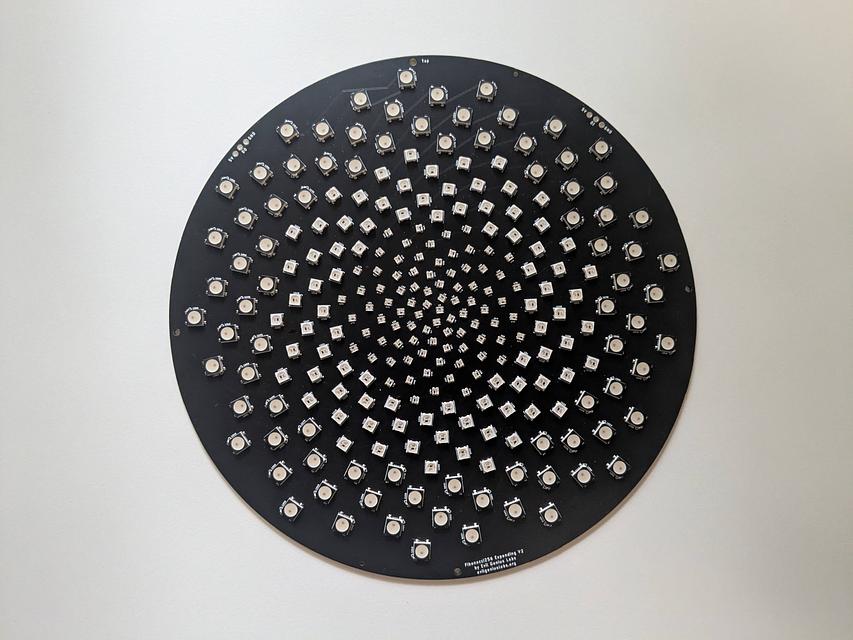

Three different sizes of LEDs are used: 2mm, 3.5mm and 5mm. The LEDs start out small and close together in the center and gradually get larger and further apart. This gives an illusion of expansion, especially with the right animation.

I have created several LED art pieces in Fibonacci patterns. They are all very labor intensive to create, and so are fairly expensive and limited in quantity. I wanted to come up with a Fibonacci layout that was at least slightly easier to create, and therefore more affordable.

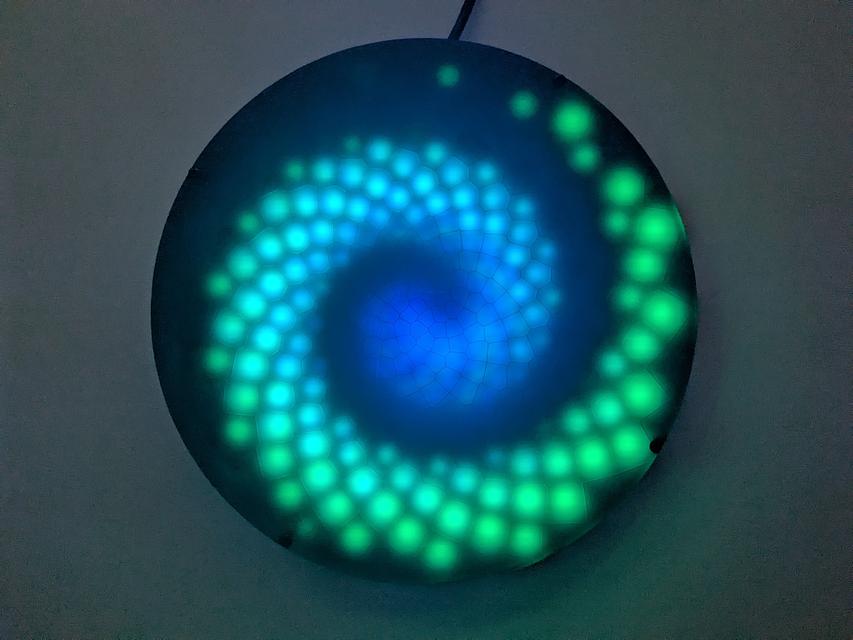

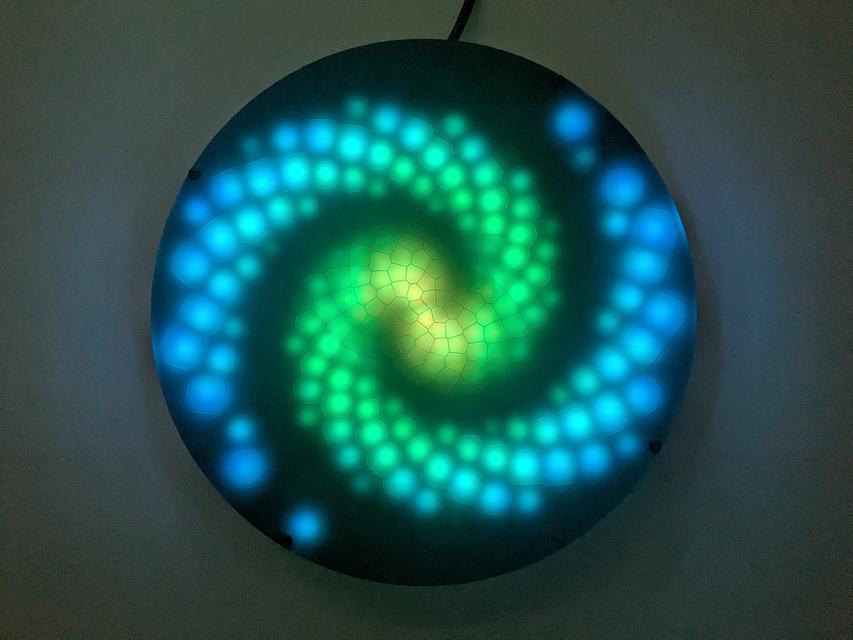

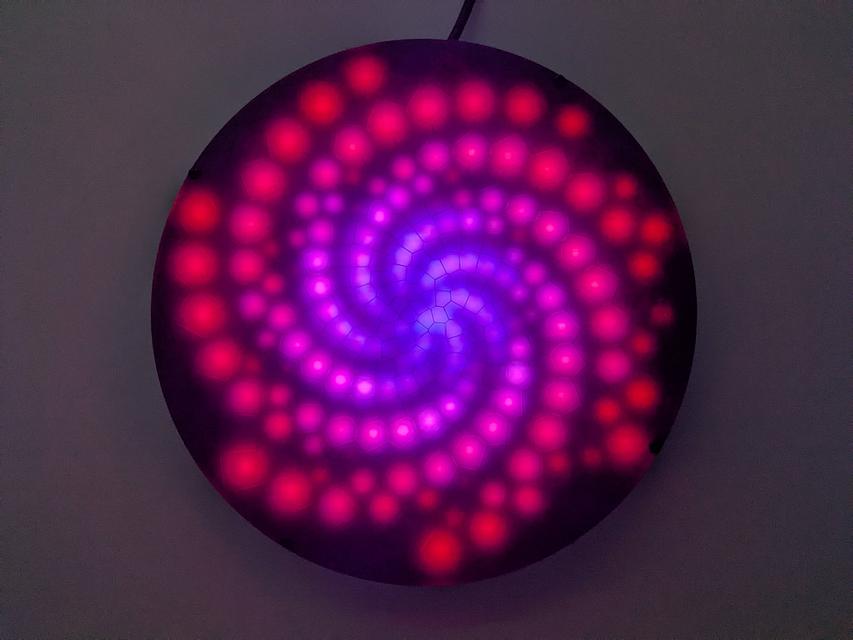

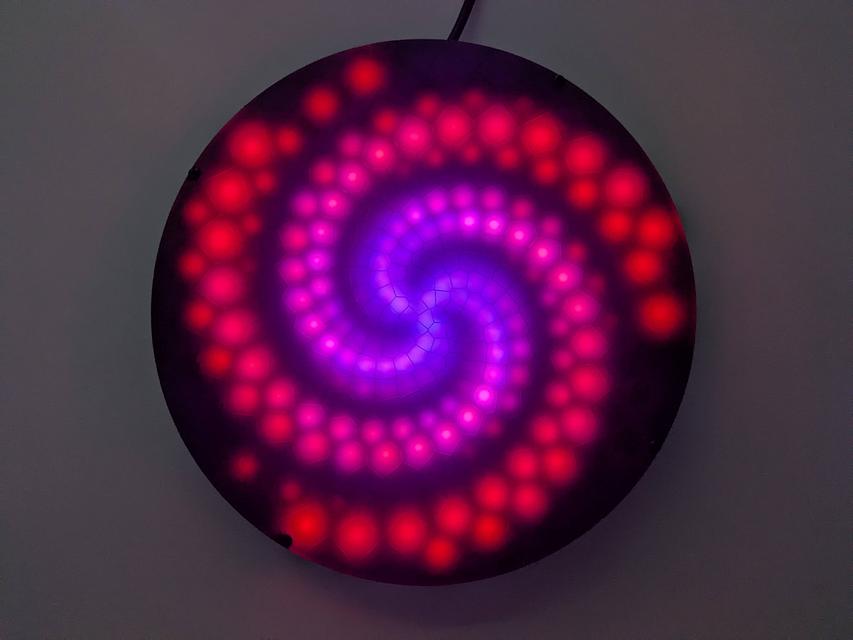

I have RGB LEDs in just about every form they come: strips, strings, rings, discs, etc. The LEDs on most discs are arranged in very regular rings. Fibonacci256 Expanding is different. The LEDs are arranged in a Fibonacci distribution. The makes the layout very organic and seemingly messy. But with the proper animation, spiral patterns emerge with spectacular results.

Case Options

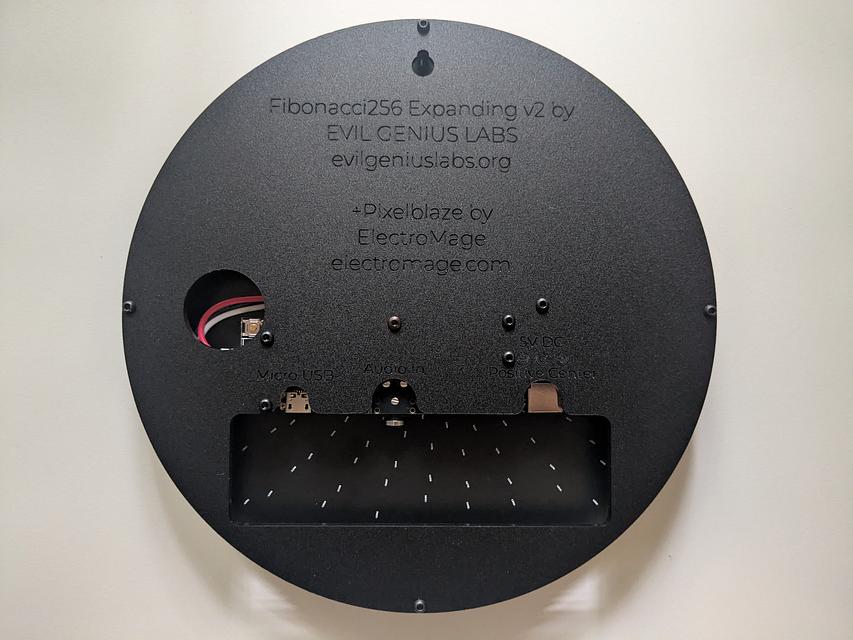

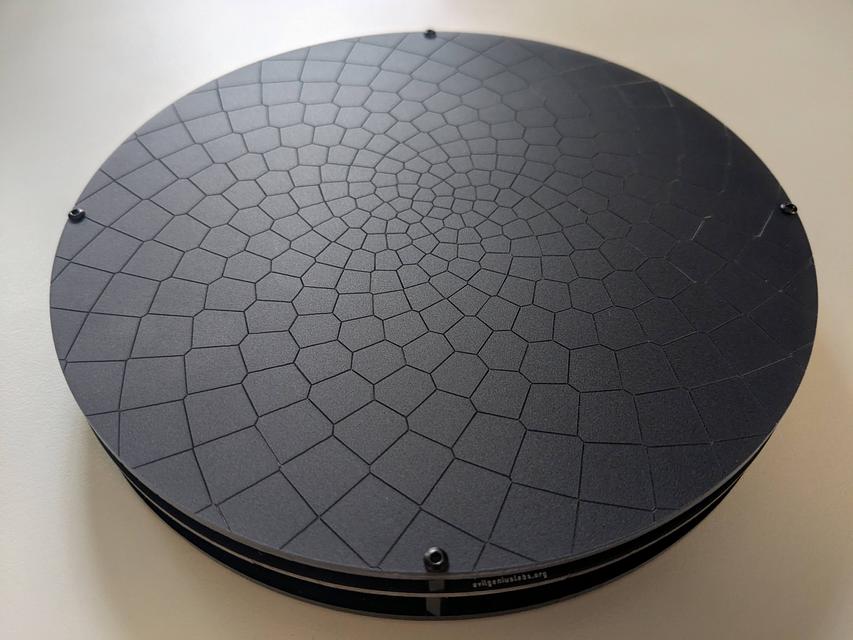

The open case is built with 3mm black LED acrylic diffuser, black nylon M3 standoffs, black metal M3 screws, and 3mm black acrylic back plate with wall mounting hole. Available as kit or fully-assembled.

Specifications

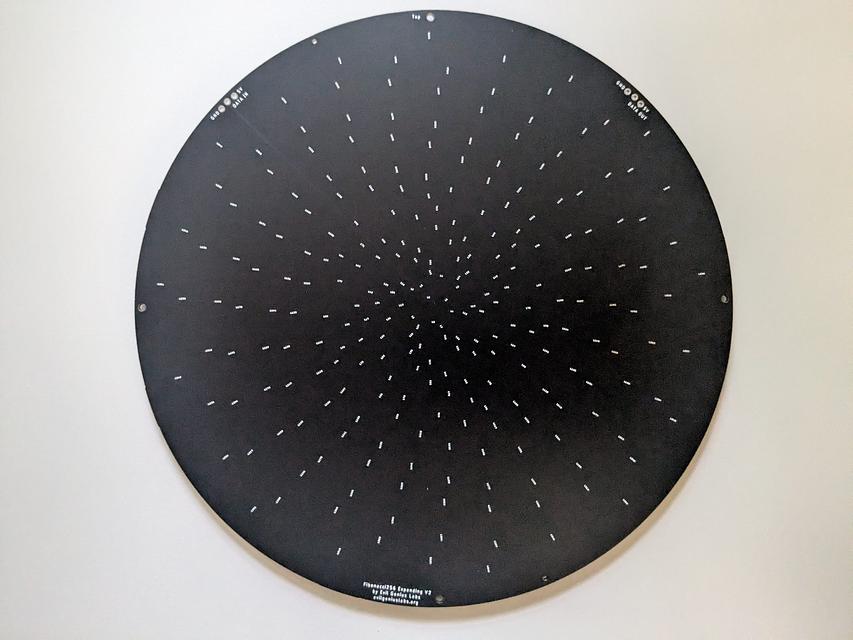

• Size: 6.54 x 6.54 x .063 inch (166 x 166 x 1.6 mm)
• 2 layer printed circuit board
• FR4 substrate
• Black SMOBC (solder mask over bare copper)
• ROHS LeadFree HASL (Hot Air Solder Leveling) Finish
• Designed in the US by Evil Genius Labs

Parts

Options available to purchase for additional amount:

• Diffuser: 3mm black LED acrylic 168mm circle.
• Case Kit: 3mm black LED acrylic 168mm circle diffuser, back plate with wall mounting hole, M3 black nylon standoffs, M3 black metal screws.
• Fully Assembled: diffuser, case, assembled Pixelblaze controller with Sensor Expansion Board, power supply, 5V power extension cable.

If the "Fully Assembled" option is not chosen, these parts are not included, but are required to assemble and use:

• Microcontroller (Arduino, ESP8266, ESP32, etc):
  • Pixelblaze by ElectroMage
• Power supply.
• Wires, connectors, crimp tool, etc.
• Soldering iron, solder, etc.

Parts I use in my builds:

• Pixelblaze V3 Standard
• Pixelblaze Sensor Expansion Board
• 5V power supply, 5V extension cable.
• Dupont Connector Pins
• Dupont Connector Housings
• Dupont Crimper Tool
• 24AWG Stranded Wire
• 90 Degree Header Pins
• M3x6mm Button Head Hex Screw
• M3x5mm+6mm Male-Female Hex Nylon Standoff
• M3 Nylon Hex Standoff Assortment
• Chemcast Black LED Acrylic
